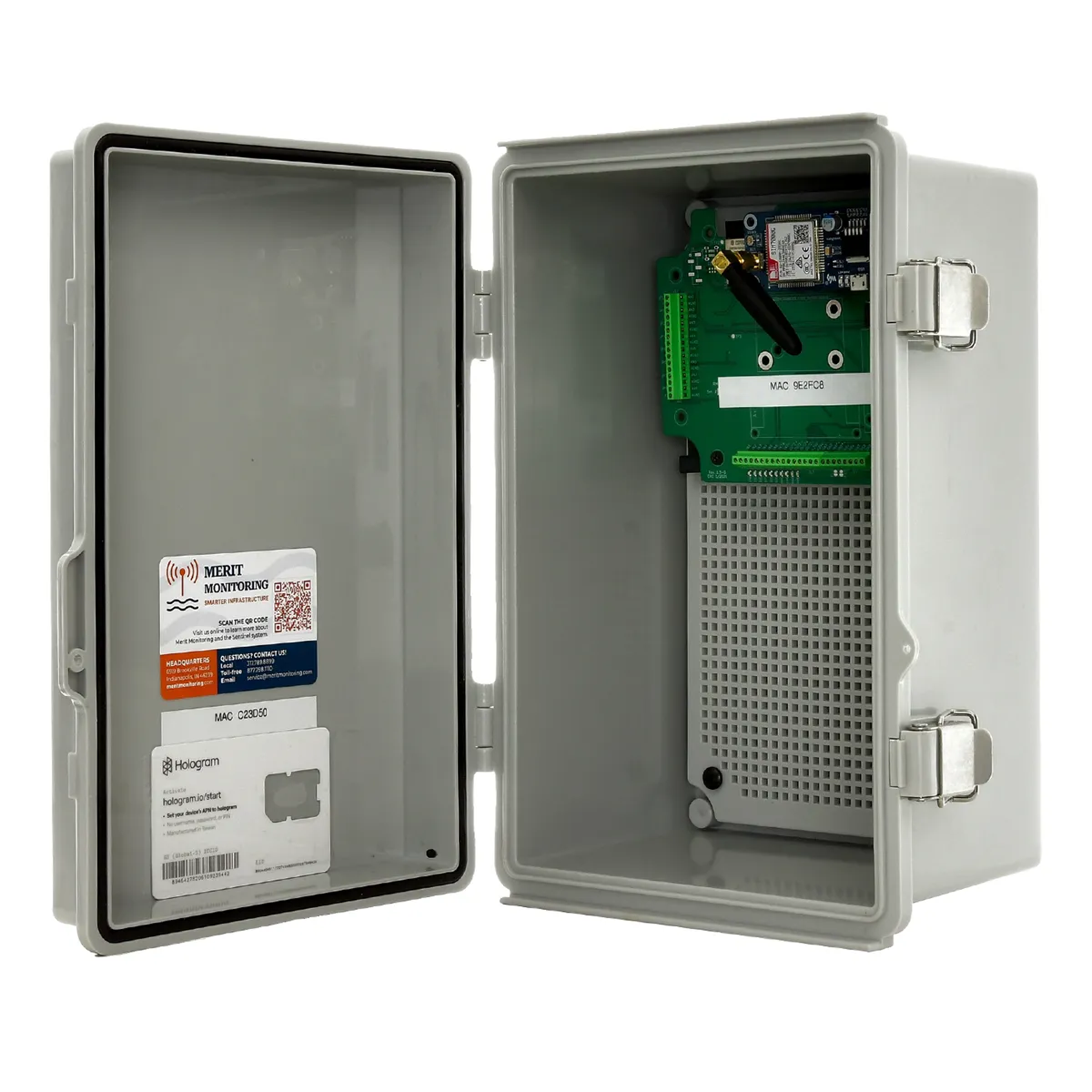

Sentinel+ Lift & Pump Station Monitoring

The Sentinel+ comes with the same core four functions as the Sentinel PLUS added user-defined inputs and real-time pump management.

A step up from the base model Sentinel, Sentinel+ is a great choice for sites requiring analog monitoring as well as water and wastewater operators who have some prior experience using remote monitoring systems.

Sentinel+ Lift & Pump Station Monitoring
Sentinel+ Lift & Pump Station Monitoring
Request A Demo
Request A Quote
Sentinel+ Lift & Pump Station Monitoring
Sentinel+ Lift & Pump Station Monitoring

Sentinel+ Advantages

  • ^
    Added analog inputs for wet well levels, pressure, flow, and current and more control with real-time pump management functionality.
  • ^
    Compatible with existing equipment. Quick and easy installation.
  • ^
    Reduces operational costs, improves compliance, and extends equipment life when used as part of a preventive maintenance program.
  • ^
    Flexible and customizable users, groups, and escalation settings for notifications to designated personnel.
  • ^
    Merit's proprietary server protocols provide excellent data security compared to SCADA and auto-dialer systems.

Specifications

Mechanical
BasePolycarbonate
CoverPolycarbonate
NEMA rating4X
IP equivalentIP67
Electrical
Power85-265V AC power consumption; max. 15 watt 24V DC + 10% power consumption; max 15 watt
Environment-20 to 60° C (-4 to 140° F)
Digital inputsDry contact to ground

Product Dimensions

  • ^
    7.5 inches (height)
  • ^
    11.5 inches (width)
  • ^
    5.5 inches (depth)

Lift & Pump Station Monitoring & Control Capabilities

  • ^
    Control pumps remotely.
  • ^
    Monitor power status, pumps status, and abnormal high-level conditions for all location from one dashboard.
  • ^
    Receive instant notifications by text, phone, and email via any smart phone, tablet, laptop, or desktop computer from any location with cell service or a WiFi connection.
  • ^
    Get live, real-time information and insights from wherever you are.

Inputs & Outputs

  • ^
    Seven (7) digital inputs
  • ^
    Four (4) analog inputs, 4-20mA
  • ^
    Two (2) digital outputs

Sentinel+ Features

Sentinel+ monitors the same four core functions as Sentinel:

  1. High level alarms
  2. Pump failures
  3. Pump status (pumps 1 and 2)
  4. Power status

PLUS, the Sentinel+ has:

  • ^
    Real-time remote pump management functionality
  • ^
    More user-defined inputs
  • ^
    Larger enclosure
  • ^
    Standard-sized terminal strip
  • ^
    Global SIM automatically connects across all major cellular carriers
  • ^
    Built-in WiFi access as connectivity back-up
  • ^
    Supercapacitor server back-up
